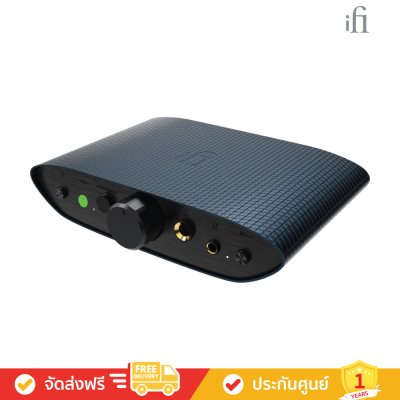

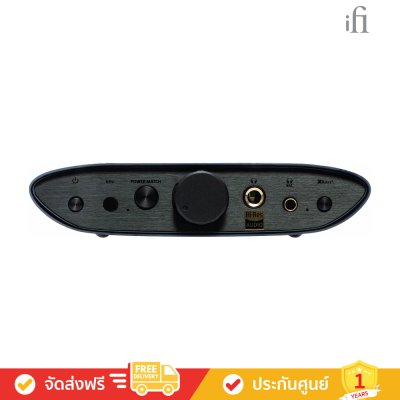

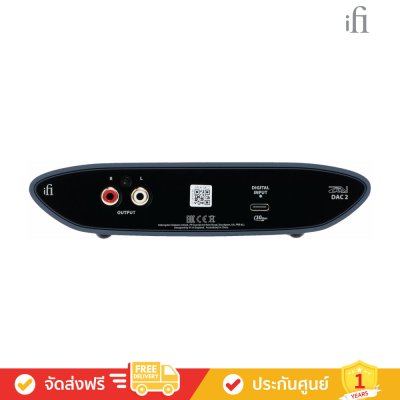

iFi Audio ZEN Air DAC 2 - Headphone DAC/Amp

Made for Listening.

The ZEN Air DAC 2 is your key to more involving music listening at home, bringing our emotionally engaging house sound to yours with little cost and complexity.

Specifications

HI-RES SUPPORT
    • PCM 384kHz; DSD256
LINE OUTPUT VOLTAGE
    • 2V; 3.4V max. (variable gain)
HP OUTPUT POWER RMS
    • ≥5.57V/484mW @ 64Ω (4.4mm)
    • ≥3.02V/286mW @ 32Ω (6.3mm)
HP OUTPUT IMPEDANCE
    • <0.7Ω (3.5mm); <1.4Ω (4.4mm)
OUTPUT IMPEDANCE
    Line Section:
        • ≤50Ω
    Headphone Section:
        • <1Ω
DYNAMIC RANGE
    • 118dBA (both outputs)
SNR
    • 118dBA (both outputs)
FREQUENCY RESPONSE
    • 20Hz-90kHz (-3dB)
THD+N
    • ≤0.0011% (6.3mm, 1.27V @ 16Ω);
    • ≤0.0015% (4.4mm, 2.4V @ 32Ω);
POWER CONSUMPTION
    • No signal ~0.55W; Max signal ~3.55W
DIMENSIONS
    • 158 x 100 x 35mm (6.2 x 3.9 x 1.4”)
NET WEIGHT
    • 315g (0.69lbs)
