Canvas HiFi - a true High End HiFi speaker (ลำโพงคุณภาพสูง)

CANVAS - HiFi, Reinvented.

    For the first time, you can enjoy true HiFi from a TV sound system.

    The combination of high-end speaker construction, room correction, and BACCH 3D crosstalk cancellation, gives you true HiFi performance.

    Performance that is otherwise only found in dedicated HiFi sound systems.

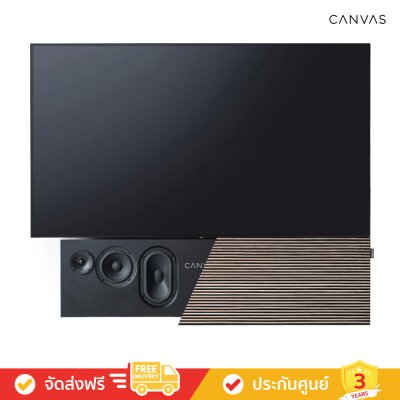

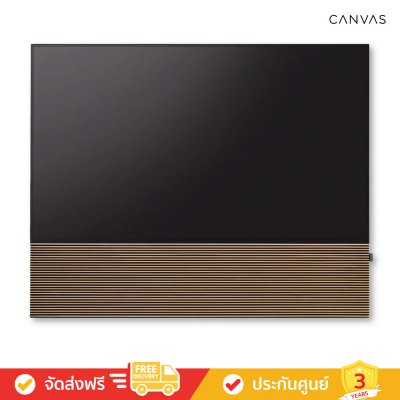

Perfect fit for your TV

Available in six sizes:
    55", 65", 75", 77", 83" and 85". CANVAS presents a seamless and sophisticated integration with your television. Elevate your home entertainment to new heights with CANVAS.


What you get:

    • CANVAS speaker including front grill - this can be used as a stanalone HiFi system without a TV or with for instance a very large TV like 85” placed below the TV - choose finish below.
    • Foot, wall mount, and all accessories, screws, cables etc is included.


Specification

TV COMPATIBILITY
    • CANVAS SOLO is suitable for all TV sizes and can hang independently under the TV.

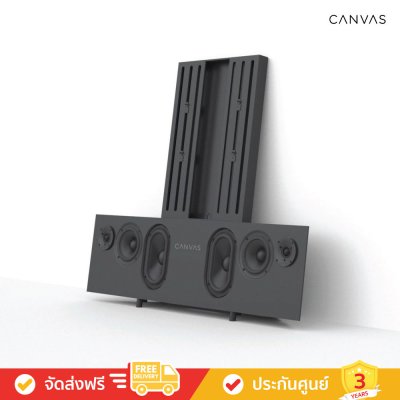

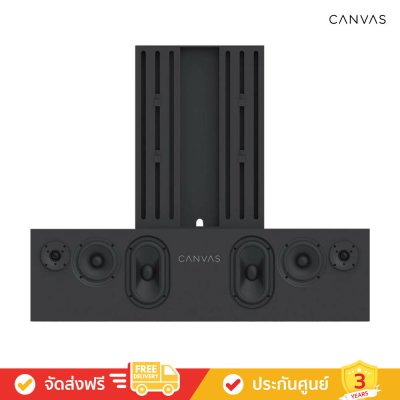

STAND / WALL MOUNT
    • Hybrid, works on both floor and wall

FRONT GRILLES
    • Interchangeable magnetically attached in 12 finish options, including Kvadrat fabrics and real wood

CABINET
    • Rock solid 24 liters, MDF with CANVAS BridgeBrace™ technology

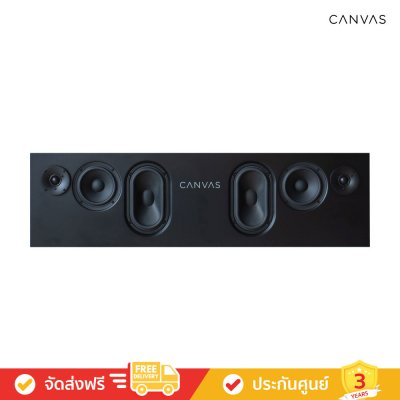

BASS / MIDRANGES
    • 2 x High End SB Acoustics paper cone, long excursion 6,5” die-cast aluminium chassis

TWEETERS
    • 2 x High End SB Acoustics 29mm silk dome with CANVAS designed waveguide die-cast aluminium frontplate

PASSIVE RADIATORS
    • 2 x High End SB Acoustics low-loss high precision, long excursion

CROSSOVERS
    • DSP tuned in a Klippel system for linear frequency response and perfect phase responce, custom high order

AMPLIFIERS
    • 4 channel Class D HiFi amps with a total of 250 watts, but with greater sound pressure than traditional soundbars with 1000 watts.
    • Many customers have wondered why CANVAS HiFi plays deeper and more powerfully than traditional soundbars, which indicate they have a much higher power output amplifier.
    • A large number of factors comes into play here, but an essential factor is that CANVAS has a whopping 24 liters of effective acoustic volume, in combination with 2 x 6.5" bass/midrange drivers and 2 x 5x8" slave bass drivers, which gives 592 cm2 radiating surface area, which corresponds to a 12" bass driver. CANVAS HiFi is therefore highly efficient, and plays louder and with more bass than traditional soundbars

DAC’s
    • Burr-Brown 24 Bit / 192 kHz

FREQENCY RESPONSE
    • 30 Hz - 20.000 Hz

SIGNAL TO NOISE RATIO (Rated power output)
    • 100 Hz >104 dB
    • 1 KHz >103 dB
    • 10 KHz >105 dB

THD+N (1/8 Rated power output)
    • 100 Hz <0.04 %
    • 1 KHz <0.04 %
    • 10 KHz <0.05 %

DSP
    • Powerful Analog Devices 300 MIPS quad-core with BACCH 3D filter

ROOM CORRECTION
    • Through iOS app, uses iPhones built in microphone or optional Zen Mic

CONNECTIVITY
    • HDMI eARC, Toslink, Analog, Apple AirPlay 2 (multi-room), Google Cast (multi-room), Roon, Tidal, Spotify Connect, DLNA.
    • In addition, automatically activated input via control unit that can be hidden in CANVAS for connection with existing control systems such as Sonos app, Bluetooth, B&O App, Bluesound, HEOS, Bose App, Samsung App or other control units. Contact our support for help with configuration if you have special wishes.

UPDATES
    • Software automatic OTA. Hardware electronics upgradable

Weight
    • 35-38 Kg / 77-84 Ibs without packaging / 42-45 Kg / 93-99 lbs with packaging

Foot:
    • 9,5 Kg

Fronts:
    • for 55": 2,1-3,5 Kg

Dimensions

Wall mounted, including wall mount and front (W x H x D):
    • for 55": 122,6 x 36,9 x 12,6 cm / 48.3 x 14.5 x 5.0 in

Floor standing, incl foot and front (W x H x D):
    • for 55": 122,6 x 37,3 x 19,8 cm / 48.3 x 14.7 x 7.8 in

CANVAS unit (W x H x D):
    • ~121,0 x ~33,0 x ~12,0cm (11,0cm without bracket) / ~47.6 x ~13.0 x ~4.7 in (4.3 in without bracket)

Voltage
    • AC 100-240V, 50-60 Hz
