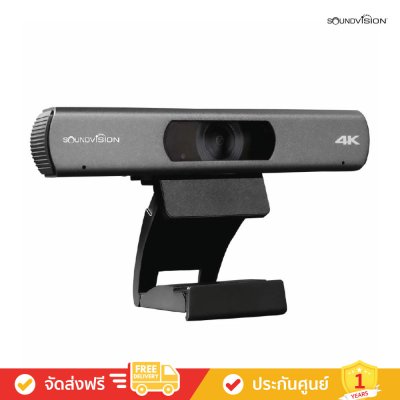

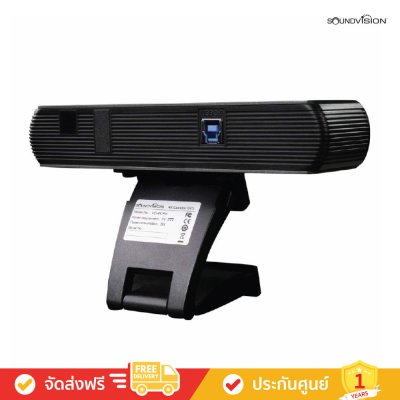

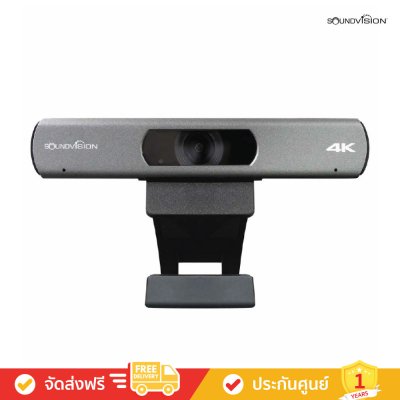

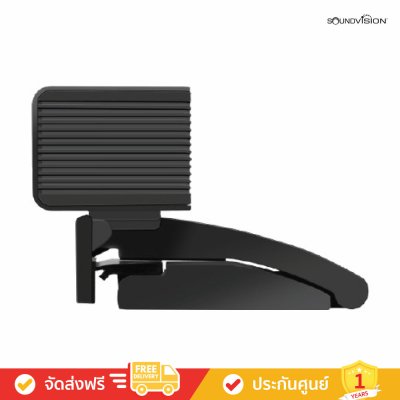

Soundvision VC-4K Pro (120°) - 4K Ultra HD USB Auto Framing, Auto Tracking, ePTZ Digital Zoo

SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.

Applications:
Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other



คุณสมบัติ

Ultra 4K HD
* Support 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and down compatible with 1080p, 720p.,supporting 8X digital zoom function.

USB 3.0
* Full functional USB, 3.0 connection, power supply, video, and audio all in one and support 2 streaming USB video signal and one audio source.

Light illumination
* Star-level ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise in the case of image noise, while the application of 2D and 3D noise reduction algorithm, significantly reducing the image noise, even under low light conditions, keep still the picture Clean and clear, the image signal to noise ratio up to 55dB or more.

Ai Feature
* Ai smart Auto framing

Ultra-Wide-Angle Lens
* Non-distortion lens, Ultra-wide view angle up to 120°, small lens with big view, supporting EPTZ.

WDR
* Support WDR, can handle different lighting environment.

Built in Microphone
* Built in microphone array, omnidirectional pickup, pickup distance up to 12 meters, noise suppressing algorithm with excellent sound.

Easy Installation
* Equipped with damping rotary shaft bracket, to meet the market almost 100% of the display, easy to install, stable and reliable.


ข้อมูลจำเพาะ


Camera

Sensor
* 1/2.5'', CMOS, Effective Pixel: 8.51M
Scanning Mode
* Progressive
Lens Mount
* M12
Lens
* Focus: f=2.8mm, FOV: 120°
Minimal Illumination
* 0.5Lux @ (F1.8, AGC ON)
Shutter
* 1/30s ~ 1/10000s
White Balance
* Auto, Indoor, Outdoor, One Push, Manual
Camera bracket
* bracket with damper
Privacy masking
* Support
Digital Noise Reduction
* 2D & 3D digital noise reduction
Backlight Compensation
* Support


USB Feature

Operate System
* Windows® 7 (1080P and under only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version 29.0.1547.70 or higher Linux
Hardware Requirements
* 2.4 GHz Intel® Core 2 Duo processor or higher;2 GB RAM or higher USB 2.0 interface
Color System / Compression
* H.265 / H.264 / MJPEG
Video Format
* 4k@30fps/25fps, 1080p@60fps/50fps/ 30fps/25fps, 720p@60fps/50fps/30fps/ 25fps ,960x540p@60fps/50fps/30fps/25fps, 640x360p@60fps/50fps/30fps/25fps
USB Video Communication
* UVC 1.0 ~ UVC 1.5
UVC ePTZ
* Support (ePTZ)


Input / Output Interface

USB Interface
* 1 x USB 3.0: Type B, female


General

Input Voltage
* 5V (USB power supply)
Current Input
* 600mA (MAX)
Operating Temperature
* -10°C ~ 40°C
Storage Temperature
* -40°C ~ 60°C
Power Consumption
* 3.W
Dimensions (W x D x H)
* 194 * 34 * 42 mm
Net Weight
* 0.5kg
