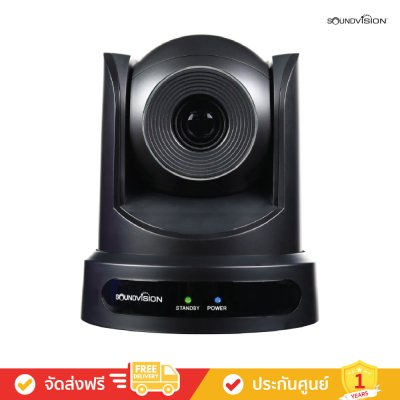

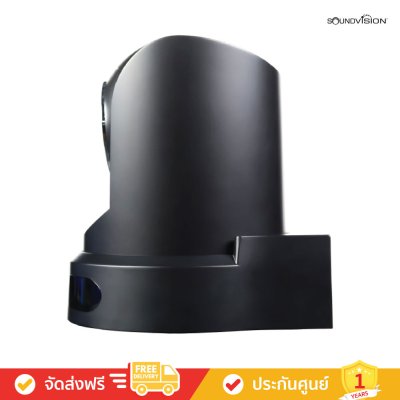

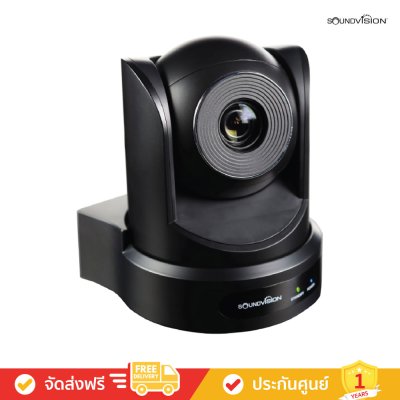

Soundvision VC-100HU - กล้องวิดีโอ PTZ ความละเอียด HD ดิจิตอล 10 เท่า และซูมออปติคอล 16 เท่า

SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.

Applications:
Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other



คุณสมบัติ

1080P full HD
* High quality HD CMOS sensor with 2.07 million effective pixels can achieve high quality image with maximum 1920×1080 resolution.
Full-function USB interface
* USB2.0 interface, support coding output.
Low light
* High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can keep still clean and clear.
H.264 Slice
* The output h.264-bit stream supports Slice and SVC encoding mode and is suitable for high-end USB conference video applications.
Remote Control
* Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.
Double stream
* Support two streams output at the same time (YUY2, MJPEG, H.264), to reduce the host codec pressure.


ข้อมูลจำเพาะ


Camera

Video System
* 1080P, 720P, 540P, 480P, 360P, 240P etc. according to different resolution for different color space/compression modes.
Sensor
* 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode
* Progressive
Lens
* 10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
Minimal Illumination
* 0.5Lux @ (F1.8, AGC ON)
Shutter
* 1/30s ~ 1/10000s
White Balance
* Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K _1, 6500K _2, 6500K _3, One Push, Manual
Backlight Compensation
* Support
Digital Noise Reduction
* 2D & 3D Digital Noise Reduction
Video S/N
* ≥ 55dB
Horizontal Angle of View
* 58.5° ~ 6.5°
Vertical Angle of View
* 35.1° ~ 3.6°
Horizontal Rotation Range
* ±170°
Vertical Rotation Range
* -30° ~ +90°
Pan Speed Range
* 2.7° ~ 47°/s
Tilt Speed Range
* 3.4° ~ 30°/s
H & V Flip
* Support
Image Freeze
* Support
Number of Preset
* 255
Preset Accuracy
* 0.1°


USB Feature

Operate System
* Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression
* YUY2 / MJPEG / H.264
Video Format
* H.264 AVC: max to 1080P@30fps MJPEG: max to 1080P@30fps
USB Video Communication Protocol
* UVC 1.1
UVC PTZ
* Support

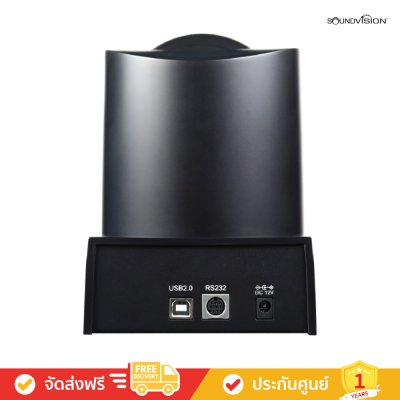

Input / Output Interface

USB Interface
* 1 x USB2.0: Type B female jack
Communication Interface
* 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
* JEITA type (DC IN 12V) / USB B type (DC IN 5V)


General

Input Voltage
* DC 12V
Current Consumption
* 0.5A（ Max）
Operating Temperature
* -10 ~ 40°C
Storage Temperature
* -40 ~ 60°C
Power Consumption
* 6W（ Max）
MTBF
* >30000h
Dimensions (W x D x H)
* 141.3 * 153 * 163.6 mm
Net Weight
* 1.153Kg
