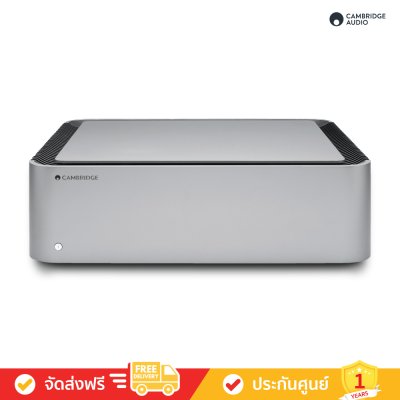

Cambridge Audio Edge M - Monoblock Power Amplifier

• Fully balanced from input to output - free from noise and distortion.
• Hand picked components - hours of listening to select only those that sound the best.
• Twin Toroidal Transformers - huge reserves of power for consistent tonality.
• Cambridge Audio proprietary Class XA Amplification - no audible crossover distortion.
• Perfect partners - pair two Edge Ms with the Edge NQ to create your perfect system.

CONTINUOUS POWER OUTPUT (<1% THD+N)

• 200W RMS into 8 Ohms, 350W RMS into 4 Ohms

THD (UNWEIGHTED)

• <0.002% 1kHz at rated power (8 Ohms) <0.02% 20Hz 20kHz at rated power (8 Ohms)

FREQUENCY RESPONSE (INTO 8 OHM)

• <3Hz >80kHz +/-1dB

S/N RATIO (REF 1W INTO 8 OHM)

• >93 dB

S/N RATIO (REF MAX POWER)

• >115 dB

GAIN

• 28dB (RCA)/ 22dB (XLR)

INPUT SENSITIVITY

• 1.7V RMS (RCA) / 3.4V RMS (XLR)

INPUT IMPEDANCES

• balanced 100k Ohm, unbalanced 47k Ohm

INPUTS

• Balanced, Unbalanced

OUTPUTS

• Speaker out, Loop out (balanced and unbalanced)

MAX POWER CONSUMPTION

• 1000W

STANDBY POWER CONSUMPTION

• <0.5W

DIMENSIONS

• 150 x 460 x 405mm (5.9 x 18.1 x 15.9")

WEIGHT

• 23.6kg (52.0lbs)

BOX CONTENTS

• EDGE M Monoblock Power Amplifier, Power Cable, Link Cable, Instruction Manual
