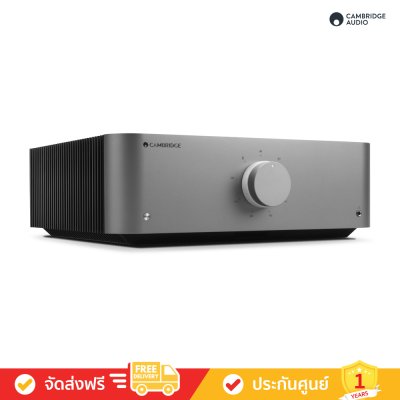

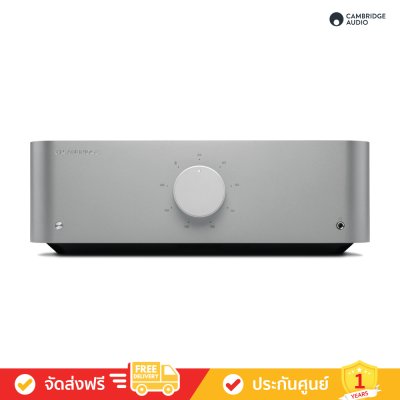

Cambridge Audio Edge A - Integrated Amplifier

• Built to celebrate musicality - Our most detailed integrated amplifier.
• Hand-picked components - hours of listening to select only those that sound the best.
• Twin Toroidal Transformers - huge reserves of power for consistent tonality.
• Cambridge Audio proprietary Class XA Amplification - no audible crossover distortion.
• Ready for digital - built-in DAC with digital inputs including TV ARC and Bluetooth aptX HD.

Continuous power output

• 100W RMS into 8 Ohms; 200W RMS into 4 Ohms

THD (unweighted)

• <0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz 20kHz at rated power (8 Ohms)

Frequency response

• <3Hz >80kHz +/-1dB

S/N ratio (ref full power)

• >103 dB

Crosstalk @ 1kHz

• < -100dB

Input sensitivity

• Input A1-A2 (unbalanced) 380mV RMS

Input impedances

• Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm

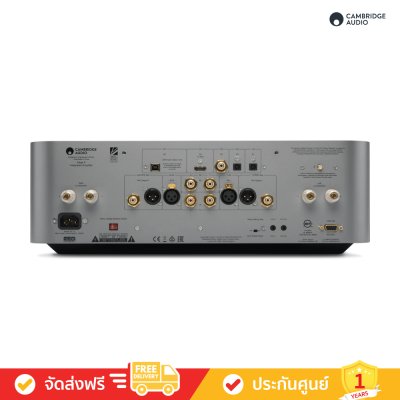

Inputs

• Balanced, Coax S/PDIF, TOSLINK, USB Audio, Unbalanced, Bluetooth, Audio Return Channel (ARC)

Outputs

• Speakers, Preamplifier, Headphones (impedance of between 12 and 600 ohms are recommended)

USB audio input

• USB Audio Class 2.0 supporting up to 24-bit 384kHz PCM, or up to DSD256

Bluetooth

• 4.1 (Smart/BLE enabled) A2DP/AVRCP supporting formats up to aptX HD

TOSLINK input

• 16/24 bits, 32-96kHz

Coax S/PDIF input

• 16/24 bits, 32-192kHz

Max power consumption

• 1000W

Standby power consumption

• <0.5W

Dimensions

• 150 x 460 x 405mm (5.9 x 18.1 x 15.9")

Weight

• 24.4kg (53.7lbs)

In the box

• Edge A Integrated Amplifier; 1.5M Power Lead; Edge Remote Control; 3 x AAA Batteries; Bluetooth Antenna; Edge Link Cable; Edge A User Manual
