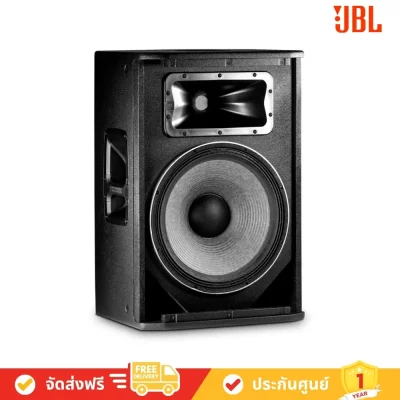

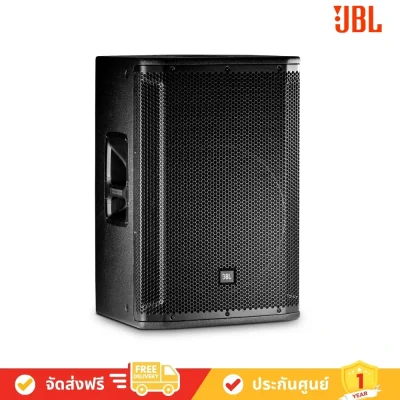

JBL SRX815 - two-way full range speaker with a 15” (ลำโพง Passive แบบ 2 ทาง ขนาด 15 นิ้ว)

JBL SRX815

15-inch 2-Way Multipurpose Passive Speaker

SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD.



คุณสมบัติ

Premium JBL Transducers
Rugged, versatile enclosures
Tunings available for Crown amps and dbx signal processors
Fully supported in Audio Architect
Power Handling: 3200W Peak, 1600W Program, 800W Continuous
Frequency Range: 41Hz-20kHz
Frequency Response: 56Hz-20kHz
Max SPL: 130dB (Peak)
Coverage Pattern: 90 x 50
Amplification options: Passive/Bi-Amp
Applications
Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

ข้อมูลจำเพาะ

System Type
Passive 15”, two-way, bass-reflex
Maximum SPL Output
124dB (Continuous), 130dB (Peak)
Frequency Range (-10 dB)
41hz - 20khz
Frequency Response (-3 dB)
56hz - 20khz
Sensitivity
95dB
System Power Rating
3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance
8 Ohm

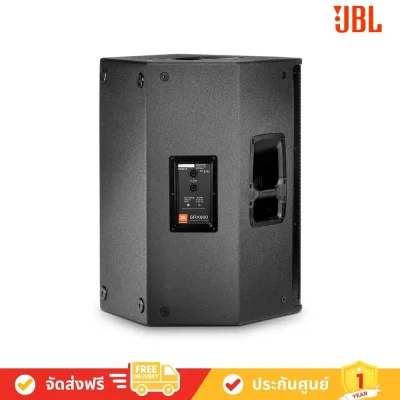

Inputs
NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes
Passive/Bi-Amp
LF Driver
JBL 2275H
HF Driver
JBL 2432H
Coverage Pattern
90 x 50
Crossover Frequency
1.9khz
Enclosure
18mm Duraflex coated plywood

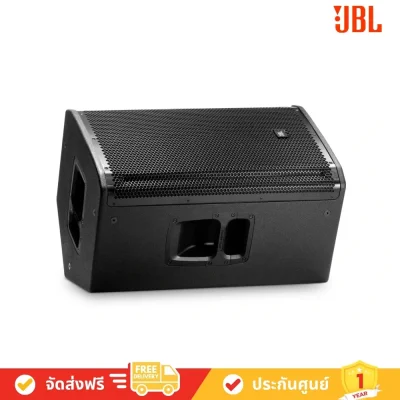

Monitor Angle
50°
Suspension / Mounting
Dual 36mm pole socket, 12 x M10 Suspension points

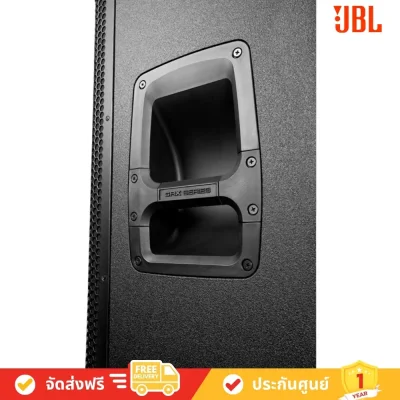

Handles
3
Finish
Obsidian Duraflex™ finish
Grille
Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D)
478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in
Weight
57.0 lbs (25.9kg)
Shipping Weight
67.0 lbs (30.4kg)
