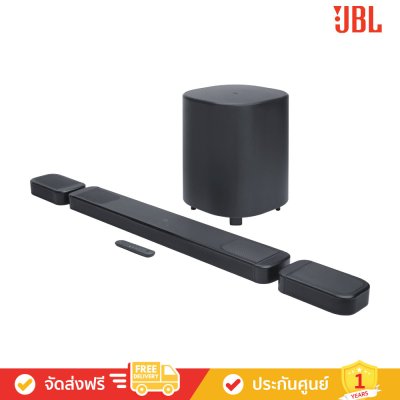

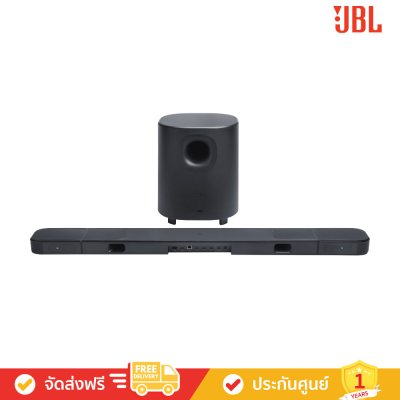

JBL Bar 1000MK2 - 7.1.4ch Soundbar System with Detachable Surround Speakers (ซาวด์บาร์)

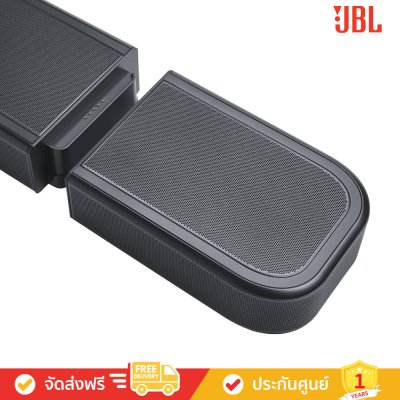

Real spatial sound—the kind that fills your space from floor to ceiling with true Dolby Atmos® and DTS:X height effects—can be yours in seconds. Just pick up the detachable wireless speakers from either end of the JBL BAR 1000MK2 soundbar and place them behind where you're sitting. That's it.

While you're pulled into the center of the action, you'll enjoy deep, punchy bass from a 10" subwoofer and MultiBeam™ 3.0 for the widest, most cinematic soundstage. If you need to step out of the room while you're catching up with your favorite video podcast or enjoying your go-to streaming playlist on your TV, take one of the wireless speakers along and you won't have to miss a thing.

JBL can do this because our speakers are trusted in cinemas, recording studios, and concert halls. And this immersive sound experience works seamlessly with all TV brands. Enjoy the freedom of unbound cinematic sound.


Specifications:


General Specifications

Sound system
* 7.1.4 channel
Power supply
* 100 - 240V AC, ~ 50/60Hz
Total speaker power output* (Max. @THD 1%)
* 960 W RMS
Soundbar output power** (Max. @THD 1%)
* 500 W
Surround speaker output power*** (Max. @THD 1%)
* 2 x 80 W
Subwoofer output power**** (Max. @THD 1%)
* 300 W
Soundbar transducer
* 6x (44x80)mm racetrack drivers, 2x 1" (25mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer
* 2x (44x90)mm racetrack drivers, 2x 2.75" (70mm) up-firing full-range drivers
Subwoofer transducer
* 10” (260mm)
Networked standby power
* < 2.0 W
Operating temperature
* 0°C - 45 °C
Lithium battery
* 3.635V, 6600mAh
Detachable surround speaker playtime
* up to 10 hours (may vary according to content type and volume level)


Audio Specifications

Frequency response
* 33Hz - 20kHz (-6dB)
Audio inputs
* Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)


Dimensions

Total soundbar dimensions (W x H x D)
* 1203 x 52x 128mm / 47.4" x 2.0" x 5.0"
Soundbar dimensions (W x H x D)
* 854 x 52 x 128mm / 33.6" x 2.0" x 5.0"
Detachable surround speaker dimensions (each) (W x H x D)
* 189x 52 x 128mm / 7.4" x 2.0" x 5.0"
Subwoofer dimensions (W x H x D):
* 325 x 400 x 325 mm / 12.8" x 15.7" x 12.8"
Soundbar weight
* 5.5kg / 12.1 lbs
Detachable surround speaker weight (each)
* 0.9 kg / 2 lbs
Subwoofer weight
* 9.1 kg / 20 lbs
Packaging dimensions (W x H x D)
* 980 x 398 x 495 mm / 38.58" x 15.67" x 19.49"
Packaging Weight
* 19.9kg / 44.4lbs


Control and Connection Specifications

USB port
* Type A
USB rating
* 5V DC, 0.5A
Supporting file formats
* mp3
MP3 codec
* MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
* 16 - 48 kHz
MP3 bitrate
* 80 - 320 kbps
Bluetooth version
* v5.3
Bluetooth profile
* A2DP v1.3, AVRCP v1.5
Bluetooth transmitter frequency range
* 2400 MHz – 2483.5 MHz
Bluetooth transmitter power
* <15 dBm (EIRP)
Wi-Fi network
* IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
* 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power
* < 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range
* 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power
* 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range
* 2406 - 2474MHz
2.4G wireless transmitter power
* <10dBm (EIRP)
Note
* Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.


Video Specifications

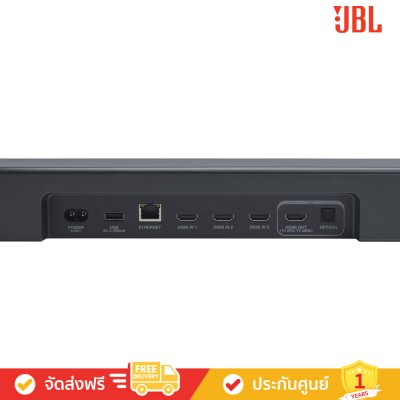

HDMI video input
* 3
HDMI video output (with Enhanced Audio Return Channel, eARC)
* 1
HDMI HDCP version
* 2.3
HDR pass through
* HDR10+, Dolby Vision

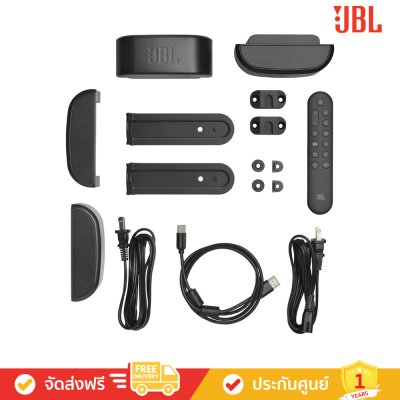

What's in The Box?

* Main soundbar

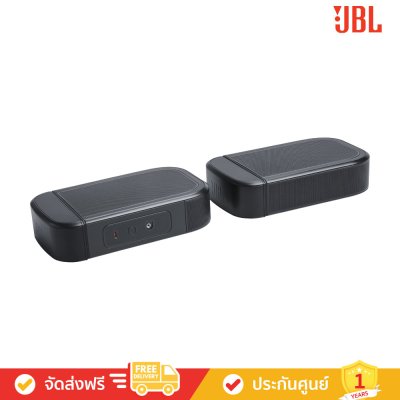

* Detachable wireless surround speakers x2
* Wireless subwoofer
* Remote control with 2 x batteries
* Power cords (up to 6pcs depending on region SKUs)
* HDMI cable
* L-shape wall-mount bracket (main bar) x2
* U-shape wall-mount bracket (for surround speakers) kit with screws x2
* Side caps x4
* Quick start guide
* Safety instruction and Warranty card
* Wall mount template
