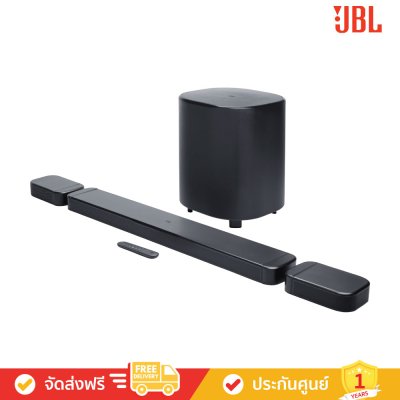

JBL Bar 800MK2 - 7.1ch Soundbar System with Detachable Surround Speakers (ซาวด์บาร์)

Get real surround sound in seconds

You can now get real, immersive, movie theater-quality, surround sound in just seconds. Seriously. Just pick up the two detachable wireless speakers from either end of the JBL BAR 800MK2—you can do it with one hand—and place them behind you for thrilling surround sound with 3D Dolby Atmos® and DTS Virtual:X spatial effects, punchy bass from a 10" subwoofer, and MultiBeam™ 3.0 for a wider, cinematic soundstage. And if you need to step out of the room while you're catching up with your favorite video podcast or enjoying your go-to streaming playlist on your TV, just take one of the wireless speakers along and you won't miss a thing. Your TV can't deliver sound even close to this level. JBL has a century of experience creating top-quality speakers for cinemas, recording studios, and concert venues. And now we bring that level of craft to your living room, with a cinematic sound experience that works seamlessly with all TVs. Give yourself the freedom to experience uncompromising sound.


General Specifications

Sound system
* 7.1 channel
Power supply
* 100 - 240V AC, ~ 50/60Hz
Total speaker power output* (Max. @THD 1%)
* 780W
Soundbar output power** (Max. @THD 1%)
* 400W
Surround speaker output power*** (Max. @THD 1%)
* 2x 40W
Subwoofer output power**** (Max. @THD 1%)
* 300W
* RMS @THD 1%
* 390W ** RMS @THD 1%
Soundbar transducer
* 6x (44x80)mm racetrack drivers, 2x 1" (25mm) tweeters
Surround speaker transducer
* 2x (44x90)mm racetrack drivers
Subwoofer transducer
* 10” (260mm)
Networked standby power
* < 2.0 W
Operating temperature
* 0°C - 45 °C
Lithium battery
* 3.635V, 3283mAh
Detachable surround speaker playtime
* up to 10 hours (may vary according to content type and volume level)


Audio Specifications

Frequency response
* 35Hz - 20kHz (-6dB)
Audio inputs
* Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)


Dimensions

Total soundbar dimensions (W x H x D)
* 1163 x 52 x 128mm / 45.8" x 2.0" x 5.0"
Soundbar dimensions (W x H x D)
* 854 x 52 x 128mm / 35.6" x 2.0" x 5.0"
Detachable surround speaker dimensions (each) (W x H x D)
* 169 x 52 x 128mm / 6.7" x 2.0" x 5.0"
Subwoofer dimensions (W x H x D)
* 325 x 400 x 325 mm / 12.8" x 15.7" x 12.8"
Soundbar weight
* 5kg / 11lbs
Detachable surround speaker weight (each)
* 0.7 kg / 1.6 lbs
Subwoofer weight
* 8.1kg / 17.8 lbs
Packaging dimensions (W x H x D)
* 980 x 398 x 495 mm / 38.58" x 15.67" x 19.49"
Packaging Weight
* 18.08kg / 41.4lbs


Control and Connection Specifications

USB port
* Type A
USB rating
* 5V DC, 0.5A
Supporting file formats
* mp3
MP3 codec
* MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
* 16 - 48 kHz
MP3 bitrate
* 80 - 320 kbps
Bluetooth version
* v5.3
Bluetooth profile
* A2DP v1.3, AVRCP v1.5
Bluetooth transmitter frequency range
* 2400 MHz – 2483.5 MHz
Bluetooth transmitter power
* <15 dBm (EIRP)
Wi-Fi network
* IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
* 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power
* < 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range
* 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power
* 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range
* 2406 - 2474MHz
2.4G wireless transmitter power
* <10dBm (EIRP)
Note
* Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.

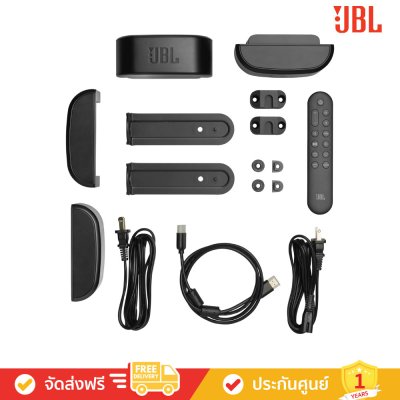

What's in the box?

* Main soundbar
* Detachable wireless surround speakers x2
* Wireless subwoofer
* Remote control with 2 x batteries
* Power cords (up to 6pcs depending on region SKUs)
* HDMI cable
* L-shape wall-mount bracket (main bar) x2
* U-shape wall-mount bracket (for surround speakers) kit with screws x2
* Side caps x4
* Quick start guide
* Safety instruction and Warranty card
* Wall mount template
