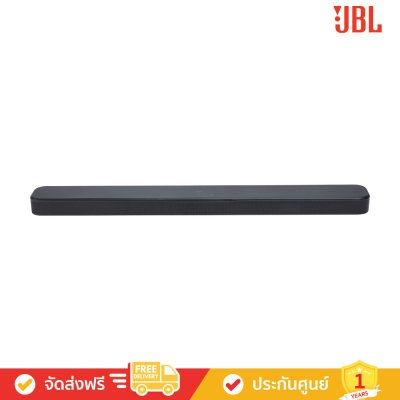

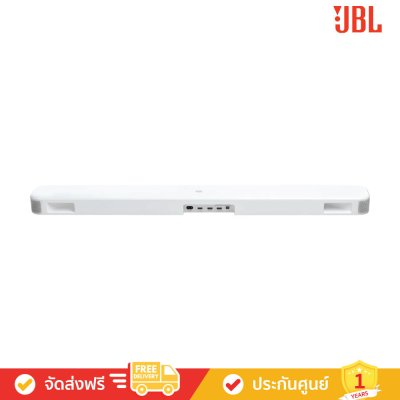

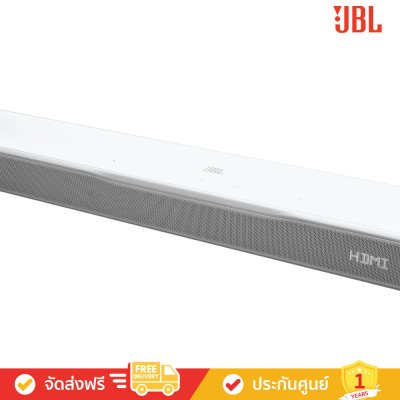

JBL Bar 300MK2 - 5.0ch All-in-One Soundbar with Dolby Atmos and DTS Virtual:X (ซาวด์บาร์)

You’re watching TV in 4K high definition resolution—so why listen in black-and-white? Flat TVs only offer flat sound. The JBL Bar 300MK2 delivers immersive, cinematic sound worthy of our almost century-long Hollywood heritage. Whether you're watching or gaming, enjoy crystal-clear dialogue, Dolby Atmos® and DTS Virtual:X® surround effects, and a wide soundstage that elevates your entertainment experience. Plus, easy access to hundreds of streaming services, so you can groove to your favorite music with best-in-class sound all night long. All from a smartly designed soundbar that's perfect for cozy rooms and works with every brand of TV. Hear the sound come alive.


Specifications:


General Specifications

Model
* BAR 300MK2
Sound system
* 5.0 channel
Power supply
* 100 - 240V AC, ~ 50/60Hz
Total speaker power output* (Max. @THD 1%)
* 450W
Soundbar transducer
* 5x (42x80)mm racetrack drivers, 4x 0.75" (20mm) tweeters
Networked standby power
* < 2.0 W
Operating temperature
* 0°C - 45 °C


Audio Specifications

Frequency response
* 50Hz - 20kHz (-6dB)
Audio inputs
* Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)


Dimensions

Main soundbar dimensions (W x H x D)
* 940 x 50.5 x 104 mm / 37" x 2.0" x 4.1"
Soundbar weight
* 2.9kg / 6.5lbs
Packaging dimensions (W x H x D)
* 1180 x 120 x 160 mm / 46.5" x 4.7" x 6.3"
Packaging Weight
* 4.8kg / 10.6 lbs
* RMS @THD 1%
* 225W

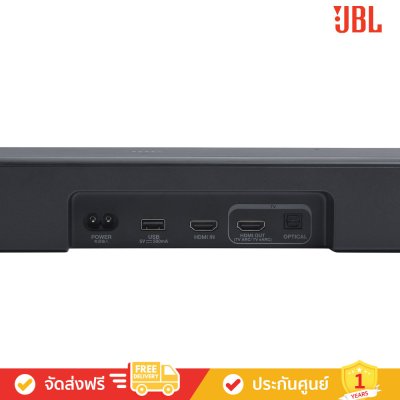

Control and Connection Specifications

USB port
* Type A
USB rating
* 5V DC, 0.5A
Supporting file formats
* mp3
MP3 codec
* MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
* 16 - 48 kHz
MP3 bitrate
* 80 - 320 kbps
Bluetooth version
* v5.3
Bluetooth profile
* A2DP v1.3, AVRCP v1.5
Bluetooth transmitter frequency range
* 2400 MHz – 2483.5 MHz
Bluetooth transmitter power
* <15 dBm (EIRP)
Wi-Fi network
* IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
* 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power
* < 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range
* 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power
* 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
Note
* Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.


Video Specifications

HDMI video input
* 1
HDMI video output (with Enhanced Audio Return Channel, eARC)
* 1
HDMI HDCP version
* 2.3
HDR pass through
* HDR10+, Dolby Vision


What's in The Box?

* Main soundbar
* Remote control with 2 x batteries
* Power cords (up to 4 pcs depending on region SKUs)
* HDMI cable
* L-shape wall-mount bracket (main bar) x2
* Quick start guide
* Safety instruction and Warranty card
* Wall mount template
