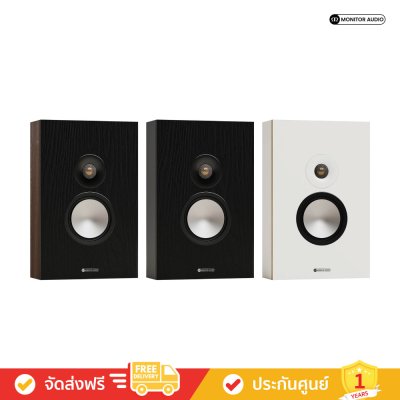

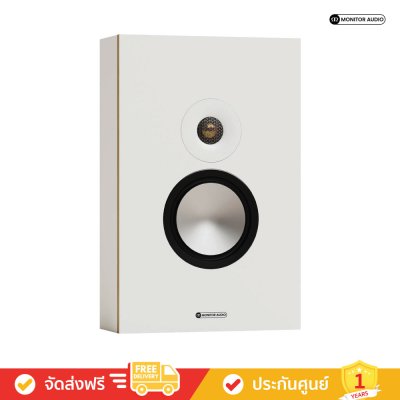

Monitor Audio Bronze On-Wall 7G - Surround Speakers (ลำโพงเซอร์ราวด์)

The Bronze On-Wall 7G is a slim, two-way speaker designed for high-performance wall-mounted stereo or surround sound applications. With a discreet profile and powerful C-CAM driver technology, it delivers detailed, high-fidelity sound while blending effortlessly into any room.

Features at a glance:
Two-way design  |  1 x 1-inch C-CAM Gold dome Tweeter with UD waveguide  |  1 x 6-inch C-CAM Bass-mid driver  |  New crossover design  |  Ported cabinet design featuring HiVe II port technology  |  Finishes available: walnut, black & white


Specification


System Format
* 2-Way

Frequency Response, In-Room (-6dB)
* 42 Hz — 30 kHz

Sensitivity (2.83 Vrms @ 1m, Free-Field)​​
* 88 dB

Sensitivity (2.83 Vrms @ 1m, Installed)
* N/A

Nominal Impedance
* 8 Ohms

Minimum Impedance (20 Hz to 20 kHz)​​
* 4.7 Ohms @ 17 kHz

Maximum Peak SPL (AES75, Z-weighted)
* 112 dB

Continuous Power Handling (CTA 426-B)
* 100 W

Recommended Amplifier Power (RMS, Music Signal)
* 50 - 200 W into 4 Ohms
* 30 - 100 W into 8 Ohms

Bass Alignment
* Ported

Port Tuning Frequency
* 47 Hz

Crossover Frequency
* LF/HF: 3.0 kHz

Drive Unit Complement
* 1 x 6" C-CAM bass mid driver
* 1 x 25mm C-CAM Gold Dome tweeter

External Dimensions with all accessories fitted (H x W x D)
* 465 x 300 x 135 mm
Packed Dimensions (H x W x D)
* 573 x 402 x 240 mm

Weight (each)
* 7 kg

Sold As
* Single
