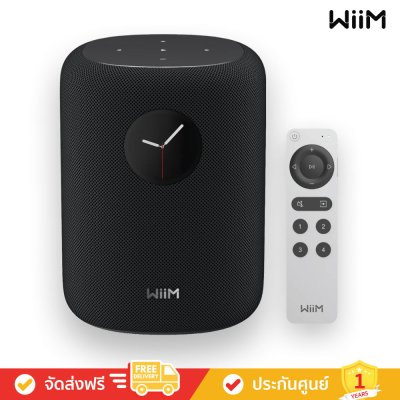

WiiM Sound - Smart Speaker with 1.8″ Touch Display (ลำโพงอัจฉริยะ)

Touch What You Hear.

Smart Speaker  •  24-bit/192 kHz  •  100W Peak  •  AI RoomFit™  •  1.8″ round touchscreen

Dimensions and Weight

Dimensions : 5.8” x 5.8” x 7.6” (146 x 146 x 194 mm).
Weight : 5.5 lbs (2.5 kg).

Audio

Frequency Response : 50 Hz - 20K Hz.
Peak Power : 100 W total.
    • 1 x 4” long-throw woofer, 50W
    • 2 x full-range tweeters, 2x25W
Crossover Frequency : 2.4 kHz.
Hi-Res : Up to 24-bit/192 kHz, gapless playback.
Room Correction : AI RoomFit™ automatic/assisted tuning.
EQ : On-device Quick EQ; advanced EQ in app (presets + custom); separate EQ settings for Wi-Fi/ Ethernet, Bluetooth, and Aux.

I/O, Connectivity, & Control

Wireless Input:
    • Wi-Fi 6E (802.11 b/g/n/ax, tri-band: 2.4/5/6 GHz)
    • Bluetooth 5.3 (Receiver & Transmitter, supports SBC, AAC, LC3)
Wired Input :
    • 100 Mbps Ethernet
    • 3.5mm Aux input
Control:
    1.8″ Round Touch Display (Hi‑Res)

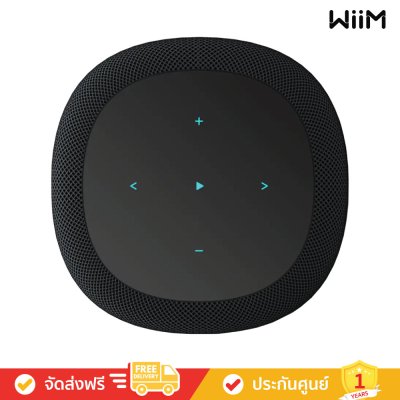

    Touch Buttons: Play/Pause, Volume Up/Down, Next/Previous Track
    WiiM Voice Remote 2 Lite (included)— one‑tap playback/volume/skip, push‑to‑talk voice, preset buttons
    Voice : Works with Alexa or Google Assistant via compatible devices
    App : WiiM Home App for iOS / Android / Windows / MAC / Apple TV / Google TV

Streaming & Smart Features

Supported Platforms:
    WiiM Home App, Google Cast, Spotify Connect, TIDAL Connect, DLNA, LMS, Roon Ready
Multi-Room Audio:
    WiiM, Google Cast, and Alexa multi-room systems
Stereo Pairing:
    Enables left/right speaker setup for expanded soundstage
Home Theater Integration:
    Functions as the surround or center channel speaker in a Dolby 5.1 setup
Smart Preset:
    Streamlines the listening experience by offering quick access to frequently used content and settings.
Alarm Clock:
    Set the alarm time, occurrence, and choose from various music sources.

Touch Display

Screen: 1.8” glass-covered, high-resolution touch display
Functions:
    • Playback control, album art, EQ adjustments, audio input selection, device settings
    • Display queue, presets, VU meters, time/date in standby mode
    • Supports customizable wallpapers
    • Guides setup (OOBE) and OTA firmware updates

Power & Build

AC-powered : 100-240V AC universal power supply; energy‑efficient standby; firmware over‑the‑air (OTA) updates.

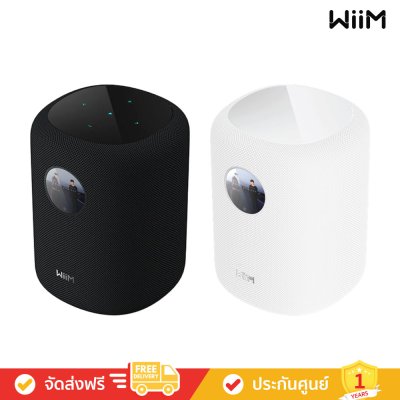

Finishes : Minimalist modern, Black/White, Fabric/Glass/PC.
Dimensions : 5.8” x 5.8” x 7.6” (146 x 146 x 194 mm).
Weight : 5.5 lbs (2.5 kg).

Package Contents

    • WiiM Sound Smart Speaker
    • WiiM Voice Remote 2 Lite (with batteries)
    • Power Cable
    • 3.5mm to RCA cable
    • Quick Start Guide
