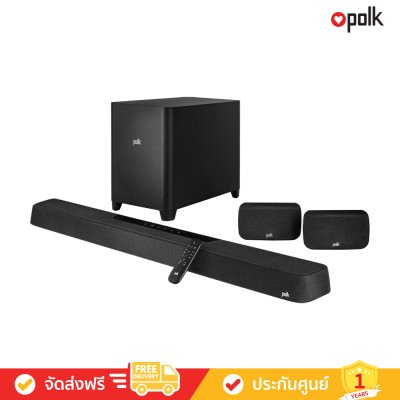

Polk Audio MagniFi Max AX SR - Flagship 7.1.2 Dolby Atmos / DTS:X Sound Bar System

Bring movies, TV, music, and games to life in 7.1.2 Dolby Atmos and DTS:X sound with our SDA-optimized, 11-speaker sound bar, wireless surrounds and subwoofer. Includes Wi-Fi and Bluetooth music streaming.

• 3D Audio with Dolby Atmos & DTS:X
• VoiceAdjust & SDA technology
• Bluetooth & WiFi with Google Chromecast, Apple Airplay & Spotify Connect
• 11 driver array
• 10" wireless subwoofer & two wireless surrounds
• 45" x 2.8" x 4.6" (Bar)

Polk Audio MagniFi Max AX SR Specifications:

OVERALL

Total Pieces

• 4

Remote

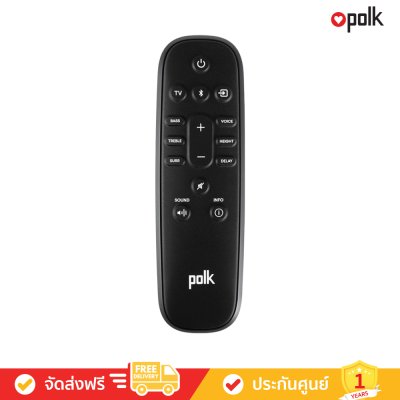

• Deluxe Remote

Remote Type

• Infrared (IR)

Included Accessories

• (1) High-speed HDMI cable
• (1) Deluxe Remote
• (2) AAA Batteries
• (2) Sound Bar wall mounting brackets (screws and fasteners not included)
• (1) Sound bar wall mount template
• (1) Wireless Surround Speaker Wall Mounting Template
• (1) Sound bar power cord
• (1) Subwoofer power cord
• (2) Wireless surround speaker power adapters
• (1) Quick Start Guide
• (1) Registration card

Original Purchaser Only

• Yes

Carton 1 (H x W x D)

• 56.9 x 121.8 x 35.8 cm

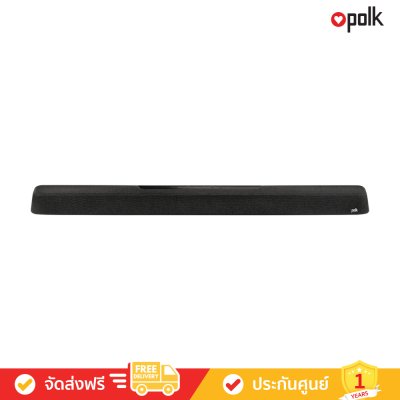

SOUND BAR

Height

• 118 mm

Width

• 1143 mm

Depth

• 72 mm

Weight

• 5.83 kg

Driver Complement

Left/Right Channels

• (4) 1 x 3 in (25 x 76 mm) racetrack mid-woofer drivers
• (2) 0.75 in (19 mm) soft dome tweeters

Center Channel

• (2) 1 x 2.5 in (25 x 64 mm) racetrack mid-woofer drivers
• (1) 0.75 in (19 mm) soft dome tweeter

Left/Right Height Channels

• (2) 2.5 in (64 mm) full-range drivers

Bluetooth

• Bluetooth 5.0

Wireless

• Yes

Wireless Protocol

• Wi-Fi (802.11 a/n/ac 2.4 GHz & 5 GHz)

Wi-Fi Streaming Platforms

• Apple AirPlay 2
• Google Chromecast for Audio
• Spotify Connect
• Works with Alexa

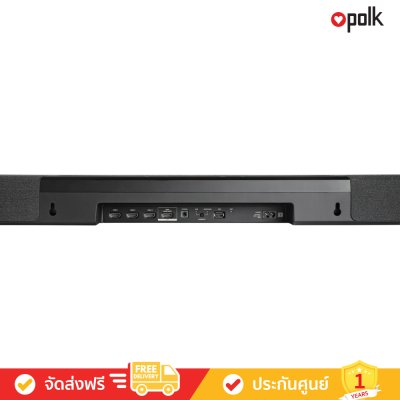

Inputs/Outputs

• (3) HDMI 4K (60Hz)
• (1) HDMI eARC 4K (60Hz)
• Toslink Optical
• USB (for firmware updates)

Video Pass-through

• 4K HDMI
• HDR
• Dolby Vision

Ethernet

• No

Mounting Type

• Flush-Mount Wall Bracket

Available Orientations

• Horizontal

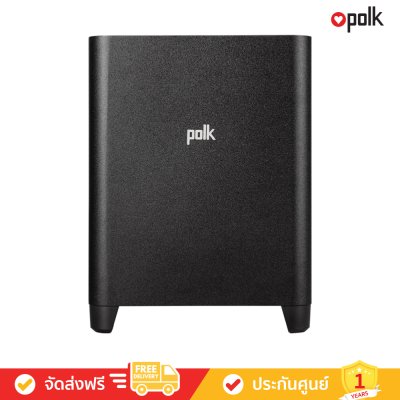

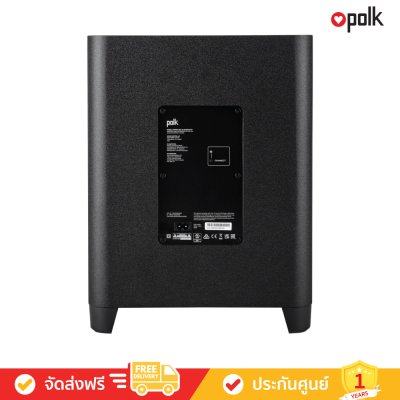

Wireless Subwoofer

Height

• 407 mm

Width

• 302 mm

Depth

• 399 mm

Weight

• 11.9 kg

Subwoofer Array Driver Enclosure Type

• Downfiring, Ported

Subwoofer Array Driver Complement

• (1) 10 in (25.4 cm) Round Woofer

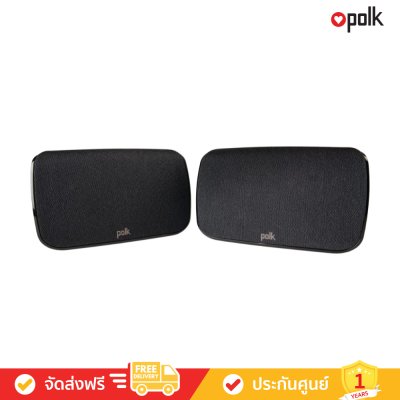

WIRELESS SURROUND SPEAKERS

Orientation

• Horizontal

Rear Array Driver Complement

• Right: (1) 3in (73mm) full-range driver
• Left: (1) 3in (73mm) full-range driver

Mounting Type

• 1/4 in (6.35 mm) - 20 Threaded Insert and Keyhole Hanger

Available Orientations

• Horizontal

SUPPORTED AUDIO FORMATS

• PCM
• Dolby Mono
• Dolby Digital
• Dolby Digital Plus
• Dolby Atmos
• Dolby Atmos True HD
• DTS Digital Surround
• DTS-HD
• DTS-HD Master Audio
• DTS:X
• DTS Virtual X
