SPECIFICATIONS
SYSTEM DESCRIPTION
* Powered Monitor (pair)
FREQUENCY RESPONSE
* 34-25kHz +/- 3dB
DYNAMIC BASS EXTENSION
* 22Hz @ 35% Volume
MAX OUTPUT
* 115 dB (1M Stereo Pair)
TOTAL SYSTEM POWER
* 240W Total System Power (480W Peak) 100W LF, 20W HF
HIGH FREQUENCY DRIVER
* 1 (2.5cm) Titanium LTS vented tweeter with Tractrix® horn
LOW FREQUENCY DRIVER
* 8 (20.32cm) high-excursion fiber-composite cone woofer
ENCLOSURE MATERIAL
* MDF with genuine wood veneer
ENCLOSURE TYPE
* Bass-reflex via rear-firing port
BLUETOOTH® SPECIFICATIONS
* VERSION: Bluetooth 5.0
* A2DP Codecs: SBC, AAC, aptX, aptX HD

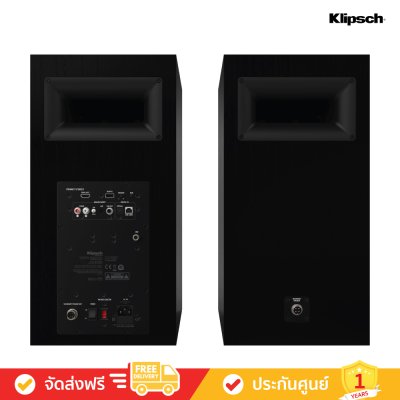

INPUTS
* HDMI-ARC with CEC
* Bluetooth® 5.0 wireless technology
* Phono/Line analog (with switch and ground screw terminal)
* 3.5mm analog mini jack
* USB digital
* Optical digital
OUTPUTS
* Single RCA line level output for connection to subwoofer
HEIGHT, WIDTH, DEPTH
* 19.13 (485.8mm) x 9.5 (241.3mm) x 13.38 (339.7mm)
WEIGHT
* Primary: 28.4 lbs (12.88kg) - Secondary: 27.0 lbs (12.25kg)
FINISH
* Walnut / Black
VOLTAGE
* 100V-240V 50/60Hz internal power supply with region specific power cords
INCLUDED ACCESSORIES
* Region-Specific power cord (2.0m)
* Remote control (with 2 x AAA batteries)
* 4-conductor speaker cable (4m)
* 4-conductor speaker cable extension (2m)
* USB Type-B to USB Type-A cable (1.5m)
* HDMI Cable (1.5m)
